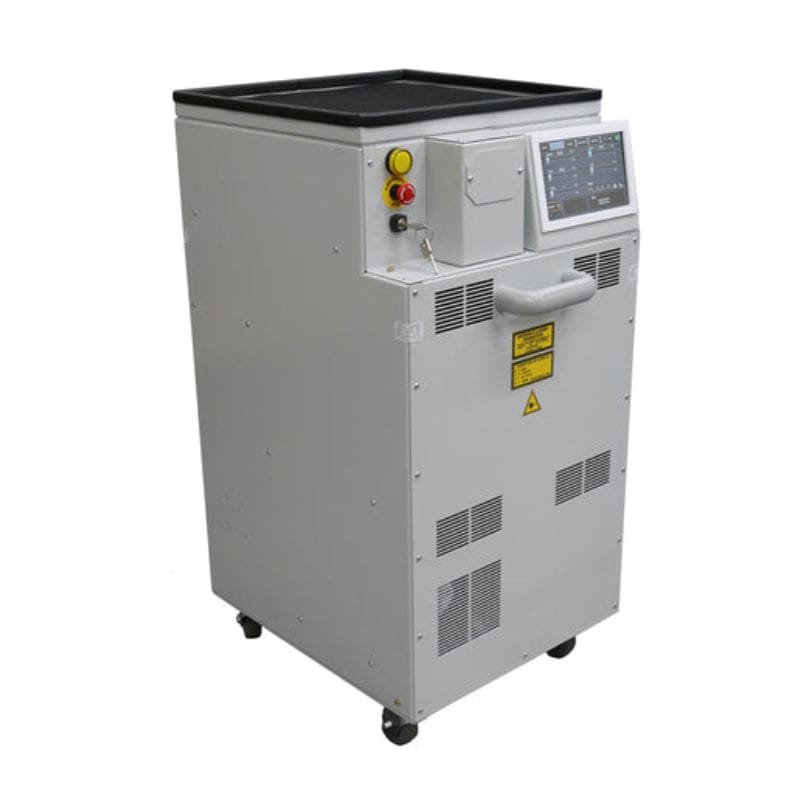

Sunstone Orion Combo 200 Open Laser Welder
The Orion Combo 200 Laser Welder is designed for businesses that want to dramatically cut down mold and die repair expenses, eliminate downtime, and regain control over production schedules. Instead of waiting for costly outside repair services, the Combo 200 lets you repair worn edges, fill EDM pits, add material, and correct damage in-house—fast, accurately, and at a fraction of the cost.
With its powerful 0.1–200 joule range and articulating arm design, the Combo 200 reaches difficult angles and delivers precise metal additions exactly where you need them. Whether repairing molds, tools, or metal components, this laser welder boosts productivity and ensures your production line stays on schedule.
Why the Combo 200 Stands Out
-
Wide energy range (0.1–200 J) for all types of mold and die repairs
-
Articulating arm for maximum mobility and access
-
High-efficiency fiber optics deliver more usable power per joule
-
Digital touchscreen for easy control
-
Cool-running components for long service life
-
Pulse shaping for optimal metallurgical performance
-
Stable inverter power supply extends flashlamp life
-
Capable of up to 30 welds per second
Ideal Applications
-
Edge rebuilds and repair
-
Filling EDM pits
-
Adding material for shimming
-
Small weldments
-
Hole restoration
-
Tool repair
-
Porosity correction
-
Identification engraving
Specifications Table
| Category | Details |
|---|---|
| Model | Orion Combo 200 Laser Welder |
| Average Power | 150 W |
| Peak Power | 15 kW |
| Energy Range | 0.1 – 200 J |
| Laser Wavelength | Nd:YAG 1064 nm ×2 |
| Impulse Time | 0.1 – 20 ms |
| Welds per Second | 1 – 30 |
| Spot Diameter | 0.6 – 2.0 mm |
| Pulse Shaping Presets | 6 |
| Memory Storage | 100 programs |
| Control | On-board joystick + color touchscreen |
| Input Power | 230 V AC, 50/60 Hz, single phase |
| Current Requirement | 20 A |
| Machine Dimensions (L×W×H) | 50 × 50 × 80 cm |
| Mounting Type | Floor-standing |
| Gas Connections | Argon: Yes / Air: Yes |
| Optics | High-efficiency fiber optics |
| Cooling System | High-efficiency cooling architecture |
