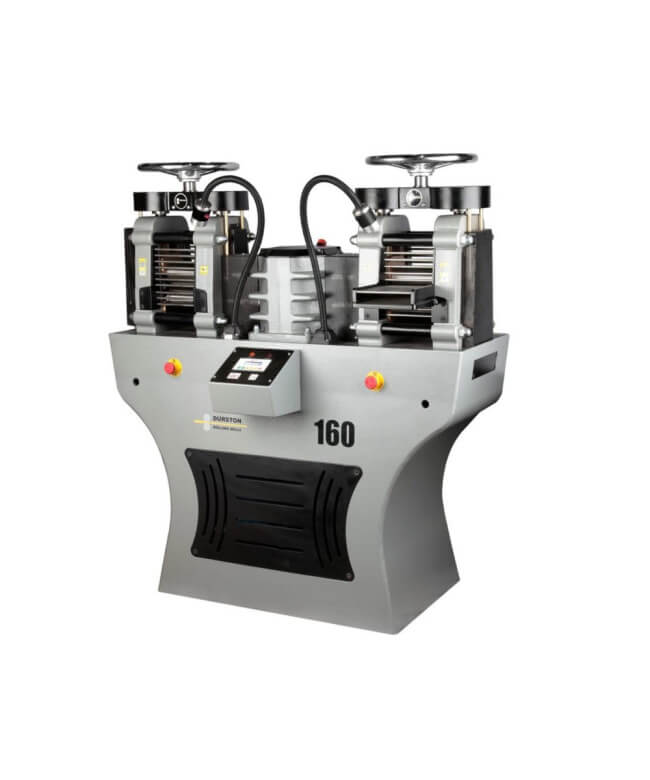

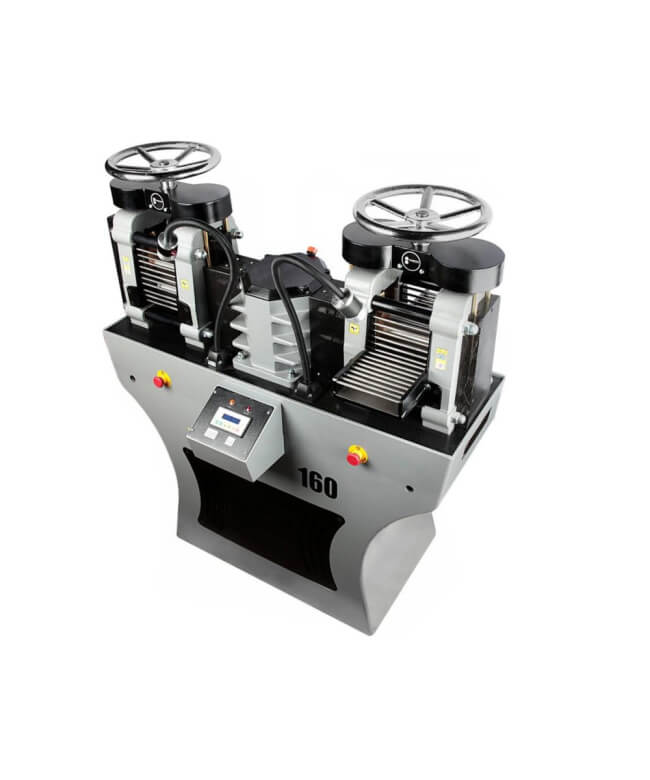

Durston FSM 160 Double-Sided Powered Rolling Mill 110V
The Durston FSM 160 Double-Sided Powered Rolling Mill stands at the forefront of professional rolling technology, combining Durston’s unmatched craftsmanship with advanced engineering and intelligent control. Constructed from heavy-duty cast iron for maximum strength and rigidity, this floor-standing mill is built to deliver consistent, high-performance rolling for decades of use.
Driven by a powerful 4 kW motor, the FSM 160 provides continuous, reliable operation with both fixed-speed and variable-speed options available. This flexibility allows the operator to adapt performance to different materials and workloads. A precision-engineered cast iron gearbox ensures smooth power delivery and steady torque, creating a flawless rolling action and a perfect finish every time.
An integrated computer control panel gives real-time data on roll speed, pressure, oil levels, and work-light status, providing the user with greater insight and control during operation. Automatic lubrication keeps the roll bearings running smoothly, reducing maintenance while extending the machine’s service life.
Each roll is induction hardened to 64 RC for long-lasting durability. The right-hand barrel provides a large 160 mm flat rolling surface on 86 mm diameter rollers, capable of handling material up to 25 mm thick. The left-hand barrel is dedicated to square wire forming, offering 22 grooves ranging from 9 mm to 1 mm for precise wire rolling across a wide range of gauges.
Variable-speed control with forward and reverse operation ensures total command over every pass, while the system runs with near-silent efficiency, making it suitable for professional studios and industrial workshops alike.
Optional accessories include a digital roll gap meter and integrated work lights, allowing for even greater precision and usability.
The FSM 160 Double-Sided Powered Rolling Mill represents the very best of Durston’s innovation and reliability—offering industrial-grade power, intelligent operation, and enduring build quality for metalworkers who expect nothing less than excellence
| Feature | Details |
|---|---|
| Motor power | 4 kW |
| Speed options | Fixed speed or variable speed |
| Operation | Double-sided powered rolling mill |
| Roller type | Combination (flat and wire) |
| Flat roller width | 160 mm |
| Roller diameter | 86 mm |
| Maximum sheet thickness | 25 mm |
| Number of wire grooves | 22 grooves (9 mm to 1 mm) |
| Roller hardness | 64 RC (induction hardened for long service life) |
| Bearings | Automatic lubrication system |
| Gearbox | Heavy-duty cast iron gearbox for smooth power delivery |
| Control panel | Computer display showing roll speed, pressure, oil level, and light status |
| Construction | Solid cast iron body for strength and rigidity |
| Mounting style | Floor-standing |
| Optional accessories | Digital roll gap meter, integrated work lights |
| Range | FSM Powered Rolling Mills |
