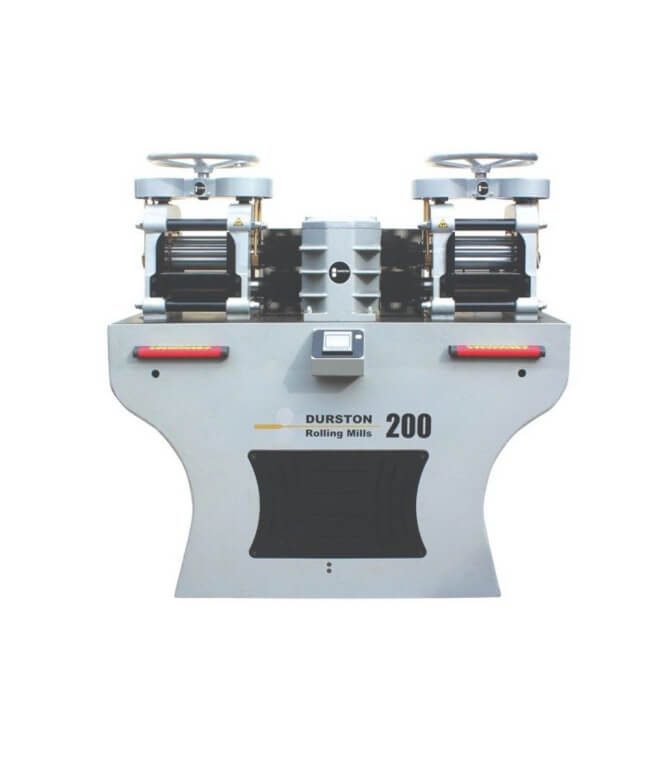

Durston FSM 200 Double-Sided Powered Rolling Mill 110V
The Durston FSM 200 Double-Sided Powered Rolling Mill stands at the top of Durston’s FSM range, built for workshops that require maximum strength, stability, and working capacity. Constructed from solid cast iron for exceptional rigidity, this floor-standing machine embodies Durston’s decades-long commitment to precision engineering and enduring quality.
Driven by a robust 5.5 kW motor, the FSM 200 is designed for continuous, heavy-duty use, delivering smooth, consistent torque under demanding workloads. Operators can choose between fixed-speed and variable-speed configurations, with forward and reverse operation available for complete control. Despite its immense power, the mill runs with near-silent efficiency, making it as refined as it is capable.
An advanced computer control panel provides real-time readouts for roll speed, pressure, oil level, and work-light status, allowing precise monitoring throughout the rolling process. Automatic lubrication ensures the roller bearings remain in optimal condition, minimizing wear and maintenance.
Each roll is induction hardened to 64 RC for outstanding durability. The right-hand barrel features a 200 mm flat rolling surface on 110 mm diameter rollers, capable of handling material up to 35 mm thick. The opposite side is dedicated to wire forming, offering 24 square grooves ranging from 12 mm down to 1 mm, ideal for a broad range of wire and bar production.
A heavy-duty cast iron gearbox ensures smooth, controlled power transfer for a flawless finish every time. Optional accessories such as a digital roll gap meter and integrated work lights provide added convenience and precision for professional users.
Powerful, precise, and built to last, the FSM 200 Double-Sided Powered Rolling Mill represents the ultimate combination of engineering excellence and workshop performance—crafted for those who demand the best
| Feature | Details |
|---|---|
| Motor power | 5.5 kW |
| Speed options | Fixed speed or variable speed |
| Operation | Double-sided powered rolling mill |
| Roller type | Combination (flat and wire) |
| Flat roller width | 200 mm |
| Roller diameter | 110 mm |
| Maximum sheet thickness | 35 mm |
| Number of wire grooves | 24 grooves (12 mm to 1 mm) |
| Roller hardness | 64 RC (induction hardened for long service life) |
| Bearings | Automatic lubrication system |
| Gearbox | Heavy-duty cast iron gearbox for smooth power delivery |
| Control panel | Computer display showing roll speed, pressure, oil level, and light status |
| Construction | Solid cast iron body for maximum strength and rigidity |
| Mounting style | Floor-standing |
| Optional accessories | Digital roll gap meter, integrated work lights |
